20kHz Ultrasonic Sewing Machine Ultrasonic Part

Shop our 20kHz Ultrasonic Sewing Machine Ultrasonic Part for precise and efficient sewing. As a factory, we offer high quality products at competitive prices.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RPS-R20
Certification
CE
Applicable Thickness
Thin Material
Drive
Foot Step
Frequency
20kHz
Power
1000W
Horn Material
Titanium
Weight
10kg
Type
Rotary Horn
Transport Package
Carton
Specification
45*22*27
Trademark
RPS-sonic
Origin
China
HS Code
8515900090
Production Capacity
1000

Packaging & Delivery

Package Size
45.00cm * 22.00cm * 27.00cm
Package Gross Weight
8.000kg

Product Description

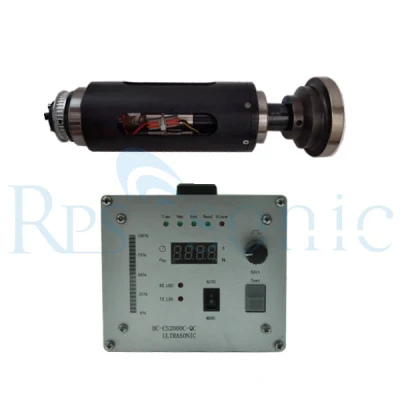

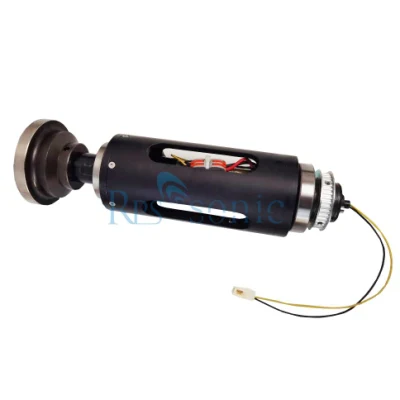

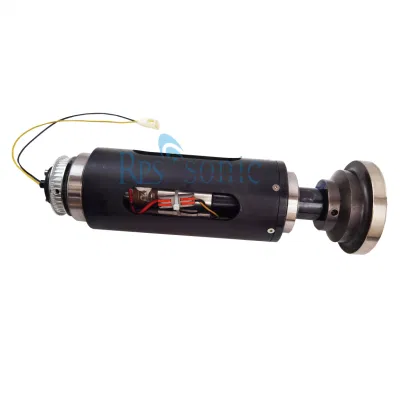

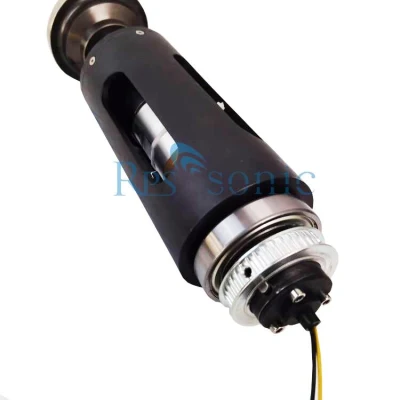

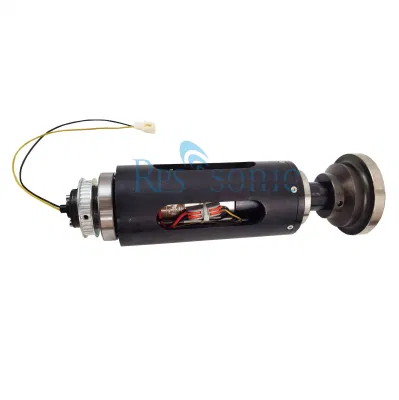

20Khz ultrasonic sewing machine ultrasonic part

20kHz Ultrasonic Sewing Machine Ultrasonic Part

Acoustic welding, and more particularly ultrasonic welding, has become increasingly popular in a number of industries. For example, businesses in the textile and personal products industries often manufacture products such as diapers, clothing, etc., that are ultrasonically welded. Ultrasonic welding tools operate under the principle of applying acoustic energy in the ultrasonic frequency range (i.e., at or above 20 kHz) to a horn. The horn vibrates in response to the applied acoustic energy to further produce an output acoustic energy. The output acoustic energy is applied to the materials (typically thermoplastics) being joined by positioning the horn in the vicinity of the parts. The vibrational energy travels through the parts, and at the interface between the parts, is converted to heat. The conversion is due to intermolecular friction that melts and fuses the parts together.

While a number of horn configurations have been developed, it is well known that a good way to attain high quality and high speed ultrasonic welds is to use a rotary horn with a rotating anvil. Typically, a rotary horn is cylindrical and rotates around an axis. The input acoustic energy is in the axial direction and the output acoustic energy is in the radial direction. The horn and anvil are essentially two cylinders positioned close to each other, rotating in opposite directions with equal or nonequal tangential velocities. The parts to be bonded pass between these cylindrical surfaces at a linear velocity which usually matches the tangential velocity of these cylindrical surfaces. Matching the tangential velocities of the rotary horn and the anvil with the linear velocity of the parts can minimize the drag between the horn and the parts.

Ultrasonics is also the method of choice for these materials, for example for parting fabrics so that there is no thickening of the material along the cut edges.

No consumables such as glue, staples or sewing thread are needed. The fabric remains intact, because no external thermal energy is directed into the fleece. Position, shape and displacement of the welding points can even support the desired properties of the composite.

Textiles is thus a field where ultrasonic technology can prove its uniqueness.

Characteristics:
1. Seamming,trimming and embossing without glue, thread or other consumables
2. More faster and cost effective than traditional sewing machine and adhesive ways
3. Eliminates fraying or unraveling of bonded edges and seams
4. Multifunctional and thousands of designs available
5. Requires minimum training and maintenance
6. Super strong ultrasonic power meets the needs of different fabric thickness

RPS-SONIC specializes in manufacturing ultrasonic seam welding solutions for rotational systems.

Nuerous seam soldering devices have been developed over the past years. From sonotrodes that can be installed in automated assembly lines, the Elmrt35 ultrasounds sewing machine up to customizations such as the PFW model devised for continuous welding of pleated filters.

There are two types of rotating modules for these operations: with either a side or central sonotrode resonating at a 35 kHz frequency and power varying from 600W to 1200W.

These horns can be made out of aluminium, treated with a special surface strengthening procedure, or titanium.

Our seam welding solutions are employed in binding synthetic textiles such as PVC, polyester, polypropylene, coated, filtering and technical fabrics.

20kHz Ultrasonic Sewing Machine Ultrasonic Part

ITEM

DECRIPTION

TYPE

35FR1

35FR2



Frequency

35khz

35khz

Max. power

600W

1000W

Rotary Welding Horn's Width

12mm

12mm

Synchronizing Belt Matched

The Length is not more than730mm, the Width 12mm

Max. Allowable Rotation Speed

100 r/min.

Install Bolt

M8, 4 pcs

Generator

Digital generator can be adjusted the output amplitude from 50% to100%, continuously working

Cable

Standard 5m

Special length, please inform us.

20kHz Ultrasonic Sewing Machine Ultrasonic Part

An ultrasonic sewing machine is versatile and easy to use in order to seam, cut, slit, trim, tack, emboss, or to cut and seal at the same time. The process used by every ultrasonic sewing machine is fast, simple and efficient. It can seal up to 80 meters per minute without the need for threads nor needles.

It is indeed a flexible technology. Due to the adaptability of its design, it is possible to mount the sewing machine on a workbench or to install it into semi or fully automated systems.
The general principle of ultrasonic welding can also be applied to nonwoven materials. The thermoplastic fibers are activated by mechanical vibrations thus melting and bonding in pre-defined patterns. A weld tool, referred to as Sonotrode, transmits the vibration into the nonwoven material. In industrial applications, ultrasonic frequencies between 20 and 35 kHz are common, with amplitudes (tool travel distances) of 10 µm to 50 µm. Processing of nonwoven materials is often performed in continuous processes at high web speed. By application of rotary tools, it is possible to achieve processing speeds of up to 800 meters/minute. A specifically engraved drum is used as welding, embossing, or cutting anvil. The contour of the anvil drum focuses the energy and precisely defines the weld spots required for the respective product.


Advantage:

Instead of needles, thread, glues or other adhesives, ultrasonic sewing equipment uses a patented rotary system, coupled with high-frequency vibrations, to bond synthetic or blended materials containing up to 40 percent natural fibers.

Resembling a traditional sewing machine, the  ultrasonic sewing machine channels the ultrasonic vibrations between a horn and rotating wheel, producing a localized heat buildup which causes the synthetic fibers to soften and fuse. This creates a strong molecular bond that's impervious to moisture. Explains Alleman, "the resulting barrier seams are sealed, secure, ultra-reliable and soft-to-the-touch without the safety issues caused by stitch holes, glue gaps, fraying or unraveling."

  • Pinpoint assembly and welding

  • Impeccable cleanliness

  • No sticky products means optimal hygiene

  • Highly resistant, even with humid product
