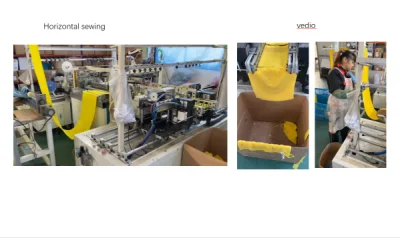

Double Sides Horizontal Auto Sewing Machine

Get the best Double Sides Horizontal Auto Sewing Machine from our factory. High-quality, efficient, and reliable for all your sewing needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
BF-H-01
Drive
Electric
Thread Number
Four Threads
Needle Number
Four Needles
Stitch Type
Lock Type
Sewing
Sewing Machine
Transport Package
Wooden Pallet
Specification
2.7m*1.7m*2.0m
Trademark
cotex
Origin
China
Production Capacity
10sets/Month

Product Description


The device model Name Equipment specifications Yield Configuration Can do product specifications
FQ-01L No stress cuter Approximately: 2.7 m * 2.5 m wide * 2.35 m high 10-15 m / min 1Air pressure cold cutter 12. Air pressure 8-10 kg.
2, automatic hydraulic side.
3, no rising force out of the cloth, automatically at the mercy
1, the fabric can be effective up to 2.2 meters.
2, cut by, latitude (except ultra-light weight), woven, coral velvet and other fabrics.
3, the cutting width is the smallest 4CM(cutter plus), the maximum is unlimited.
1 with 3-5 BF-H-01
BF-Q-01 Two-sided bun seams Approximately: 2.7 m * 1.7 m * 2.0 m high 6-15 m / depending on needle density. Custom sewing machine 1The fabric is effective at 70CM width .
2, by-editor, latitude (except ultra-light weight), woven, coral velvet and other fabrics.
3The needle density is adjusted according to the requirements, and double needle seams can be made.
30CM*30CM 40CM*40CM
BF-H-01s.
Lengths over 50CM 1 with 1
BF-H-01 The two sides of the seam are seamed Approximately: 2.7 m * 2.5 m wide * 2.35 m high 30CM*30CM 40CM*40CM
Label 1350-1450 bars / hour,
No label 1450-1550 bars / hour.
Panasonic Servo Motor 3, Four Cross Step 86 Motor 4, Four Horizontal 57 Step Motor 2, Yonghong PLC,Independent Research and Development Control System, Chinese and English version. Custom sewing machine, imported accessories. Supporting the initiative to send cloth institutions a set. 1, fabrics can be effective to achieve 50CM,length80CM .
2, by-editor, latitude (except ultra-light weight), woven, coral velvet and other fabrics.
3The needle density is adjusted according to the requirements, and double needle seams can be made. Disconnected and nonwoven strip self-stop alarm.

DB-01 The overlay detects the pipeline Approximately: 2.8 m long * 1.6 m wide * 1 m high The yield is synchronized with the BF-H-01 Product automatic detection, bad products automatically picked up, genuine automatic stacking and counting, according to the count of good number of strapping, can be 1-3 strapping according to requirements. Adapt to a variety of fabrics. 2 DB-01s with a set of BH-H-01
DB-02 Simple stacker Approximately: 2.8 m long * 0.92 m wide * 1 m high The yield is synchronized with the BF-H-01 Auto-stack and count Adapt to a variety of fabrics. 2 DB-02s with a set of BH-H-01
CC-01 Duster Approximately: 0.85 m * 0.85 m * 1.85 m high 3KW motor, two sets of equipment shared. The suction machine is placed indoors and does not affect the air conditioning on the workshop and is free of dust. Pour the trash 1-2 times a day. One device can vacuum the old-fashioned sewing equipment.   1 with 2 BF-Q-01s and BF-H-01
