Overview

Basic Info.

Model NO.
JXF
Application Range
Power Plants
Shell Material
Steel Plate
Shell Protection Grade
IP55
Brand
Kodery
Color
White
Related Voltage
Below 500V
Rated Current
up to 400A
Transport Package
Iron Case/Wooden Case
Specification
250x200x140mm
Trademark
KODERY
Origin
China

Product Description

Product Description

JXF series distribution box is suited for operating in the circuit of AC 50Hz, rated operating voltage 500V and below, in some special cases, the protection grade can reach up to IP55, the top and bottom of the panel will provide knockout holes, if multiple pipes are used for incoming lines, opening plate can be prepared, maxi rated current up to 400A, especially suitable for usage in metering and control box of mining field, hotel, living buildings and etc. Comply with GB7251.12-2013 Low voltage switchgear and controlgear, IEC60439-2:2011 Low voltage switchgear and controlgear standard.

JXF low voltage distribution board is suitable for three-phase three-wire,three-phase four-wire,three-phase five-wire system of 50/60Hz, 500V or lower, no bigger than 630A loading current. It is used to control distribution system, leakage protection, and various control and protection of motor overloading, short-circuit, lacking phase. This box has reasonable design, small size, nice appearance, reliable performance, to be widely use in metallurgy, petrol, medical health, navigation, building, malls, school, city constructions.

Its core is the AC frequency inverter technology and the microcomputer control technology. Use closed-loop control system. The control panel can automatically adjust the pump speed and the number of units running, so that the pressure of the water supply network to maintain the required pressure and flow. So as to improve the quality of water supply and high efficient energy saving purposes, the control cabinet can replace the high water-level tank, water tower and other facilities and valve adjustment and other measures to improve the automation of water supply and drinking water quality to prevent secondary pollution which is an ideal modern water supply products.
Product Parameters
Size Height Width Depth Thickness of Iron sheet
2520/14 250 200 140 1.2











1.5
3025/14 300 250 140
3025/18 300 250 180
3030/14 300 300 140
3030/18 300 300 180
4030/14 400 300 140
4030/20 400 300 200
5040/14 500 400 140
5040/20 500 400 200
5040/23 500 400 230
6040/14 600 400 140
6040/20 600 400 200
6040/23 600 400 230
6050/14 600 500 140
6050/20 600 500 200
6050/23 600 500 230
7050/16 700 500 160
7050/20 700 500 200
7050/23 700 500 230
8060/20 800 600 200
8060/23 800 600 230
8060/25 800 600 250
10080/20 1000 800 200
10080/25 1000 800 250
10080/30 1000 800 300

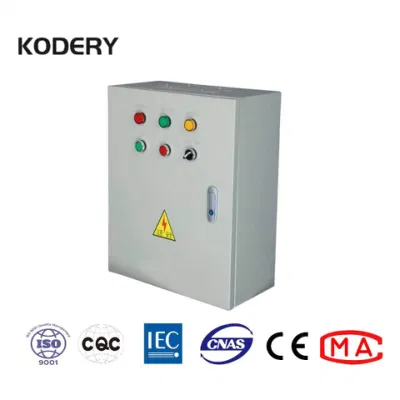

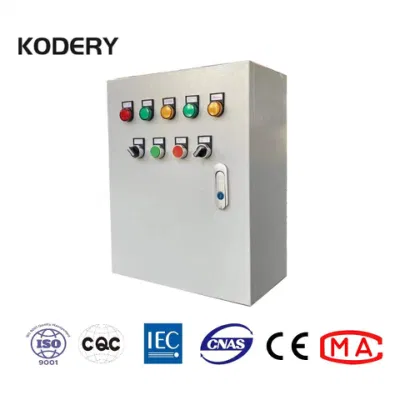

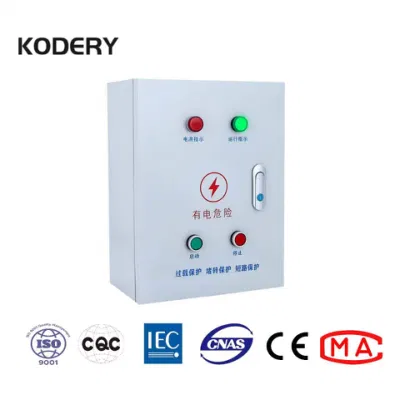

Detailed Photos
