15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine

Introducing the "15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine" from our factory. High-quality embroidery for all garments.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
WY1201CS/ WY1501CS
Applicable Thickness
Middle Thickness Material
Needle Number
Twelve Needles
Head Number
Single
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery, 3D/Garment/Shoes/Sequin/Bead/Cording/Sequin
Main Motor
Panasonic Servo Motor
Screen Size
8" Inches Touch Screen
Language
16 Kinds(English/Spanish/Portuguese/French)
Needle
12/15 Needle
Motor
Japanese Servo Motor
Trimmer
Automatic
Thread Broken Checking
Automatic
Light
LED Light
Memory Size
20million Stitch with 200 Patterns
Embroidery Area
360*510mm
Speed
1200rpm
Rotation Hook
Japan Koban
Bobbin Winder
Included
Application
Cap/ T-Shirt/ Flat/ Garment/ Jacket/ Leather/ 3D E
Transport Package
Wooden Case
Specification
750*740*850mm / 840*830*930mm 0.648CBM
Trademark
WONYO
Origin
China
HS Code
8447902000
Production Capacity
1000 Sets/Year

Product Description

15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine

15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine



Designed for embroidery beginners, veterans, hobbyists, crafters and home-based entrepreneurs, WY1201CS has all the features to meet your embroidery needs.
Below are some examples of items that the WY1201CS can embroider on.


Caps Laptop Cases Wristbands Pillow Cases
Robes Sports Uniforms Seat Covers Scrubs
Backpacks Headbands Baby Bibs Jackets
Sweat Suits Dog Collars Dance Wear Towels
Visors Children's Clothing Golf Shirts Bags
Pet Apparel Work Uniforms Leather Products Pants

                                                                                                   The list goes on and on

Main Features

1) Suitable for flat embroidery, cap embroidery and finished garments embroidery
2) Automatic thread trimmer
3) Maximum speed 1200 RPM
4) 270 degree Wide cap frame unit
5) Color LCD display showing real time stitching
6) USB input port
7) Automatic color change
8) Thread break detection
9) Pre-sew design trace capable
10) Memory size 20, 000, 000 stitches
11) Emergency stop
12) Electricity: 110V/60Hz or 220V/50Hz available
13) Built-in bobbin winder
14) Keeping current data or work when emergency stop or power off
15) Mending function. (back and skip stitches under controller)
16) Switch of Cap/ flat embroidery mode eliminating hitting the frame.
17) USB port with fast data transmission and good compatibility
18) Mainboard intergated into control panel protecting from dust or external force.
19) Lay-out of keys on panel is user-friendly.
20) Built-in Network

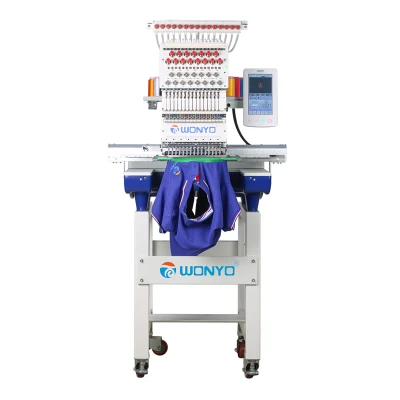

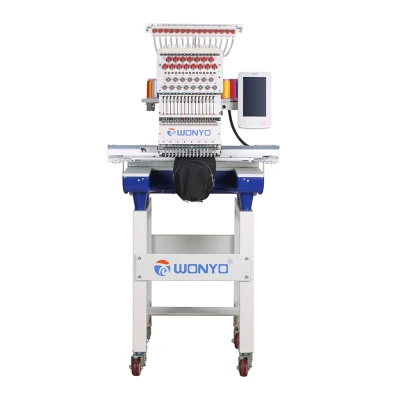

Single Head Computerized Embroidery Machine

Model WY1201CS/ WY1501CS
Operation Computerized
Head Number 1 Head
Needle/Color Number 12/15
Embroidery Area 360*510mm (Optional: Big Area 360*1200mm)
Worktable Size 380*560mm
Head Interval 0
Overall Dimensions 745*870*840mm
Certification CE, SGS
After-sales Service Engineers available to service machinery overseas
application flat, cap, T-shirt, finished garments, logo, 3D
Package Wooden Case
Motor Servo and stepper motor
Warranty 12 months limited warranty with lifetime support
language 12 languages
Speed 1200RPM
Computer 8 inch LCD display and touch screen showing real time stitching

 Compact Control Panel

 A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles
15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine
Hoops/frames inclued

A. 1 x Shirt Front Round Hoop 9 cm (3.5")    B. 1 x Shirt Front Round Hoop 12 cm (4.7")
C. 1x Shirt Front Round Hoop 15 cm (5.9")   D. 1 x Shirt Front Round Hoop 19 cm (9")
E. 1 x Jacket Back Square Hoop 30 x 30 cm (12" x 12")
F. 1 x Sash Frame 56 x 38 cm (22" x 15")
15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine
Built-in Network:
Using advanced network technology, you can connect together as many WONYO'S machine as you wish to create extremely flexible production system. Embroider the same design on all of your machines at the same time or different designs on different machines simultaneously.
15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine
15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine

15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine



FAQ Hot Questions

Q: Is this a trustable long-term strategic partner?

A: Just ask our customers, view our company profile, assessment of capability, factory glimpse, and the honor we had. And why not contact us or pay a visit to us?

Q: What service will I get with this buying?

A: Simply at your service: available consultancy before sales, easy communication during sales, easy payment term, smooth and safe delivery of guaranteed quality, and assured timely services after sales.

Q: What kind of embroidery work and embroidery machine do I need?

A: Think: ready-made garment/cap/hat, or garment before sewing, or just flat fabric?

Normal flat stitch, or special chenille/chain/loop stitch, or sequin/paillette, or cord/tape/ribbon to add value to your embroidery?

Q: How many heads do I need and what embroidery area on each head?

A: Think: how big is your factory and how much is your expected production?

The embroidery area on each head depends on the maximum area of your embroidery design to run.

Q: How many stitches do I get per minute (SPM) on each head?

A: Super high speed model gives max. 1500SPM,

High speed model gives max. 1200SPM,

Normal speed model gives max. 1000SPM,

Lower speed model gives max.850SPM.

Q: Do I need the Elite model or economy model?

A: Think: How much would you pay for a machine? What we offer is what you need!

Q: Can I represent and sell ORDER machines in my market?

A: Welcome to join WONYO family and grow to be a strong distributor.

Looking for Agents/ Distributors from all over the world!

Welcome to contact Forcen at Tel +86-18926492809
15 Needles Single Head Double Head Shirt Garments Flat Computerized Embroidery Machine
