Single Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing Machine

Looking for a Single Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing Machine? Look no further! We are a factory specializing in industrial sewing machines.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
SNK-1903ASS-ZMK
Drive
Electric
Thread Number
Multi
Needle Number
Single Needle
Stitch Type
Lock Type
Max Sewing Speed
3000rpm
Name
Pattern Sewing Machine
Key
Sewing Machine
Function
Easy to Operate
Transport Package
Wooden Case
Trademark
aotobot
Origin
Zhejiang, China
HS Code
8451500000
Production Capacity
10000/Year

Product Description

Product Description

High-speed electric button sewing machine, with 33 kinds of different pattern, it is suitable for different standard sewing requirement. Before finish sewing bar-tacking will prevent loosening of thread it has kinds of different requirement accessories

Feature
Adopt the motor drive way
The highest sewing speed reached 3000rpm; Fast and dose, It greatly reduces the sewing cycle time and improves the efficiency of production
It's easy to exchange
By changing the custom fastener , the machine can be changed to a fastener quickly
High pulse motor delivery device
High pulse motor delivery device, Improved use of wire clamp , Best timing and timing of needle bar.
Custom cylinder
Custom high-quality cylinder, increase the cylinder strength, to ensure that the pressure foot compaction pillow ( material ), not easy broken needle, pattern round do not aliasing
The design of rod and pin without oil
Ensure that the fabric is not contaminated during the sewing process

Product Parameters


Model SNK1903ASS-ZMK SNK1903ASS-ZMK
Specification Standard Standard
Max Sewing Speed 3000rpm 3000rpm
Button size 8-32mm 8-32mm
Stitch length 0.1mm-10mm 0.1mm-10mm
Needle bar stroke 45.7mm 45.7mm
Lift of the work clamp foot Max.13mm Max.13mm
Needle ( at the time of delivery ) DP x 17 (# 14) DP x 17 (# 14)
Hook Standard shuttle hook Standard shuttle hook
Number of stitches that can be stored in memory Max 200000 Stitches Max 200000 Stitches
Number of standard patterns 33 kinds pattern 33 kinds pattern
Number of data that can be input 200 patterns ( for up to 150 patterns, sewing data can be added .) 200 patterns ( for up to 150 patterns, sewing data can be added .)
Enlarging / Reducing facility 20-200% ( 1% step) , Pattern enlargement/reduction can be done by increasing/decreasing the stitch length 20-200% ( 1% step) , Pattern enlargement/reduction can be done by increasing/decreasing the stitch length
Memory medium EEP-ROM/EP-ROM EEP-ROM/EP-ROM


Detailed Photos

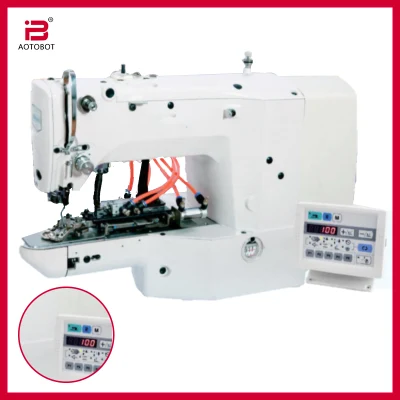

Single Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing Machine

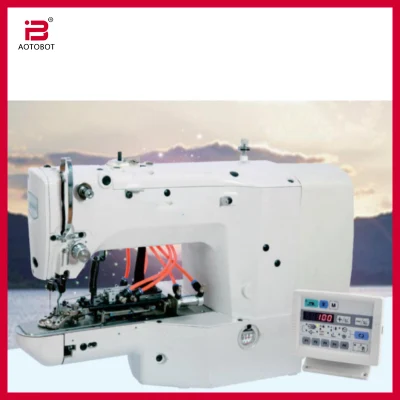

Single Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing Machine

Company Profile

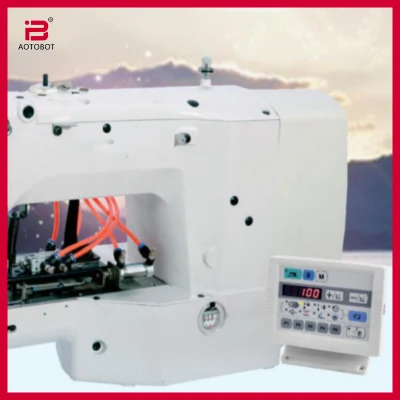

Single Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing Machine

ZHEJIANGBOPAIINTELLIGENGTTECHNOLOGYCO.,LTD is high-tech company, which is specialized in intelligent cutting equipment design, research, and sales. With introducing foreign advanced technology and incorporating own experience in cutting field for many years, AOTOBOT has becomes the complete solution manufacture. It supplies CAD, spreading machine, smart cutting machine for soft material cutting industry. The company's products have been used from traditional textiles and clothing to the outdoors. car home furnishing. sofa seat, medical treatment, industrial textile industry and other fields. And successfully developed cutting technology for glass fiber, aerospace materials, bulletproof materials, synthetic materials. The company's products are all over Germany, the United States. The company's product has been sold to Germany, United states, Brazil, Vietnam, Cambodia, India, Kazakhstan and other countries. Also established branch in Vietnam. With rich experience and R&D ability, AOTOBOT could provide customized service and personalized product. also it supplies systematic cutting solution. Has invested enormous amount of energy on intelligent factory automation, AOTOBOT hugely promotes production efficiency and solve factory intelligence problems for customer factory Our aim is to create reliable products with professional technology and win the recognition of users with good after-sales service. Business philosophy: Integrity and cooperation, and win-win future. Corporate culture: unity, diligence, refinement, and innovation. Future development, we will open. more intelligent cutting custom era.
Single Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing MachineSingle Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing MachineSingle Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing MachineSingle Needle Lockstitch Electronic Bar Tacking Machine Industrial Sewing Machine



FAQ

Q1. Are you a factory or a trading company?
(ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD.)is a national high-tech enterprise specializing in the design, research and development, production, sales and service of intelligent cutting equipment. We have more than 15 years of manufacturing experience, and our products
were exported to more than 80 countries and regions.

Q2. Where is the advantage of your machine ?
Our  cutting system technology developed from Japan  since 40 years ago,  till now , we have sold to
More than 40 countries.
Aotobot brand cutting machine equipped with all the specifications . Bopai company  appled  the Patent of double knife plate which hugely improved the cutting speed by double time.   Aotobot equipment  supply    YASAKAWA  motor and drive system,
Adsorption device, bristle cleaning automatically,air cooling system, knife intelligence technology etc.

Q3. how about the installation and after sale service?
A: we have one strong and professional after sale service team,all the engineers with more than 10 years experiences.  We can send technical to  supply training and installation.  Also we have distributors in all over the world, which also can take care of the after sale service daily.

Q4. How do you guarantee your quality?
A: With more than 40years of manufacturing experience, our products are
superior to the domestic standard and meet the Japan standard.   All the  main device  are
Importing from Japan . machines run well without confusion on problem.
