Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine

Get precise label roll cutting and slitting with our Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine. Factory direct quality and precision.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RYKQ-1800
Packaging
Cartons
Classification
Paper Roll Cutting Machine
Applicable Process
Process Materials
Suitable Substrates
Paper
Packaging Material
Plastic
Transport Package
Carton
Trademark
ROYAL PACKING
Origin
China

Product Description

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine
Specification
Material type: white board paper, carbon-free paper, coated paper, two-side offset paper, etc.
Material thickness: 30-510gsm (paper)
Max. Diameter of raw material:1800mm
Raw material paper core: 3#, 6#
Max. Width of raw Material :1800mm
Min. Width of Raw Material:400mm
Roller surface width: 1850mm
Width of slitting: 40-1800mm
Rewinding paper core: 3#
Max diameter of rewinding: 1500mm
Error-correction length:150mm
Precision: ±0.15mm
Max. Speed: 400m/min
Slitting speed: 10---400m/min
Total power: 52KW
Total weight: 18000kg
Dimension: length 7500mm, width 4200mm, height 2300mm
Slitting tools: 10 sets for standard, also can do according to    customer's requirement.
Upper slitter dimension: Φ160*100*50mm
     Brand: shanghai shenlong
Bottom round cutters dimension: Φ150*120*40mm
      Brand: shanghai shenlong
Rewinding shaft with 2pcs of 3# air shaft, recycle using.
This equipment is with 13pcs if Φ120 aluminum roller, 1pcs of rubber roller and 1pcs of steel roller.
With 2pcs of round cutter shaft.

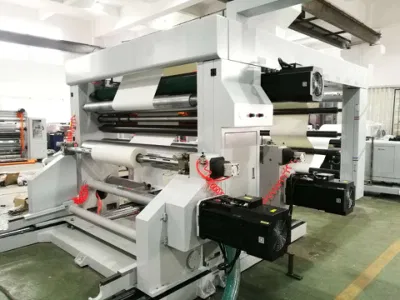

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine
Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine
Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine



Configuration
Name Specification Qty Brand name
Casting frame Thickness of wallboard 80mm 1set
3 inch air shaft   2pcs Qingbang, Shanghai
Main traction roll(mirror steel roller)

Φ250*2350mm
Φ300*2350mm
Φ150*2350mm
3pcs Hard chromium plating with glazing. Dynamic balance 500m/min. Precision G1.6
Rubber press roller Φ200*2350mm 1pcs Imported silica gel, the hardness reach to 70degree, Dynamic balance 500m/min. Precision G1.6
Hardness aluminum oxide running roller φ160*2350mm 13pcs Hardness oxidation treatment, Dynamic balance 500m/min. Precision G1.6
Rewinding servo motor 22KW 2sets Intell, China
Traction servo motor 18.5KW 1set Intell, China
Unwinding magnetic powder clutch 20KG 2sets Wenzhou
Motor for blowing the slitter edge 5.5KW 1set Wenzhou
Bearing   some HRB(guider roller)
NSK(traction roller)
Pneumatic part   some SMC
Simulation error-correction   1set arise
PLC SMART-S7-200 1pcs SIEMENS
10" touch screen TPC1061Ti 1pcs MCGS
Proximity switch   1pcs OMRON from Japan
Low-voltage apparatus   some Schneider
Power supply S100-24 1pcs Taiwan meanwell
Linear guideway   1set Hiwin, Taiwan
Waste discharge motor 5.5KW 1unit Wenzhou, China
Function description
Unwinding part
  1. Adopts shaftless hydraulic fixing system, easily for one person   operation. Using special conic node system from 3" to 6" for durable using. The 2 sides clamping arm are controlled by the hydraulic dovetail groove linear guideway. 2pcs of hydraulic clamping oil cylinder moves to each side at the same time, easily operation.
  2. 2pcs of hydraulic type loading and unloading material oil cylinder can bear 3T material to save the manpower and time.
  3. It does not need to input the material thickness, the proximity switch can inspect the unwinding diameter directly which near the transmission shaft. The machine can slow down according to the rest material, in this way, the worker can prepare for the next roller. The unwinding tension adopts the sensor close-cycle automatic tension, controlled by PLC.
  4. With the manual adjustment system, the unloading material tightness can be controlled. The adjustable range: +/-20mm
  5. Automatic error-correction for the edge position is controlled by the CCD photographic system. The whole frame adopts guide way type to move left and right which driven by the servo motor. The moving part uses thread screw.
  6. Pneumatic material connecting device, with the square steel structure, adopts the way of pneumatic and rubber pressing roll to save the material
  7. Bridge type feeding materials
  8. The unwinding adopts the Italy pneumatic braking.
  9. Precision proportional valve use SMC

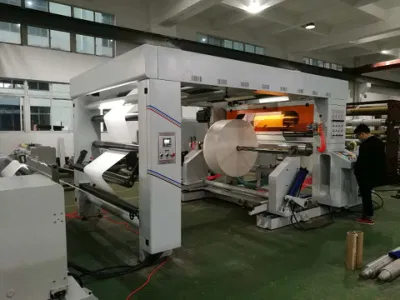

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine
Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine


Main body part
  1. The bare frame uses the 80# casting material, easily for dismounting and transportation.
  2. The transmission combines the servo motor with synchronous wheel speed ratio.
  3. Automatic traction device adopts pneumatic pressure way. The servo motor drives the mirror roll.
  4. Close-cycle vector control.

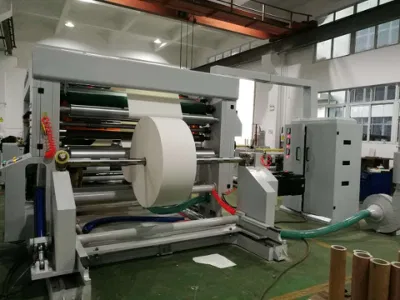

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine

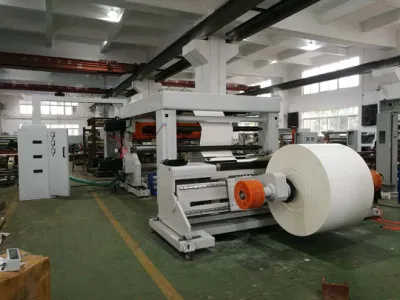

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine

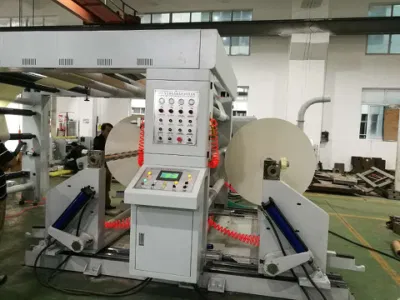

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine


   Rewinding part
  1. With double structure of surface rolling and center rolling, rewinding by front and back(A/B shaft), double air shaft way( also can be single rewinding).
  2. Clamping arm uses imported dovetail groove linear guideway
  3. The rewinding shaft clings to the steel shaft( the steel shaft is driven)
  4. Each bearing with 1 set of 18.5KW servo motor to drive the air shaft. The tension decided by the roll diameter. PLC controls frequency converter automatically to adjust the tension of the air shaft to make all the sheet same thickness when do the multiple slitting. Because of the press roller, all the reels end face is smooth. it has the choice of pneumatic press roller and self-weight press roller. The degree of the tightness of the finished products can be adjustable. With the increasing of the rewinding diameter, the servo motor speed goes down to extend the life of the air shaft.
  5. It also can choose the whole shaft tension and the servo motor in torque control mode in PLC
  6. Discharging type: automatic hydraulic
  7. Waste paper recovery device: Using motor to blow out the waste paper more than 20m. (also can choose the automatic tatter function). The net cage should be prepared by customer.

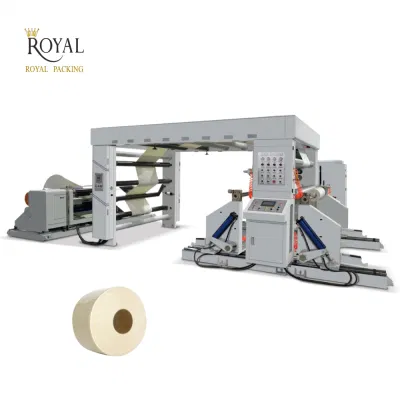

Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting MachineSlitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine
Slitting Rewinding Machine for Label Roll Rotary Cut and Slitting Machine
